Floating table normal

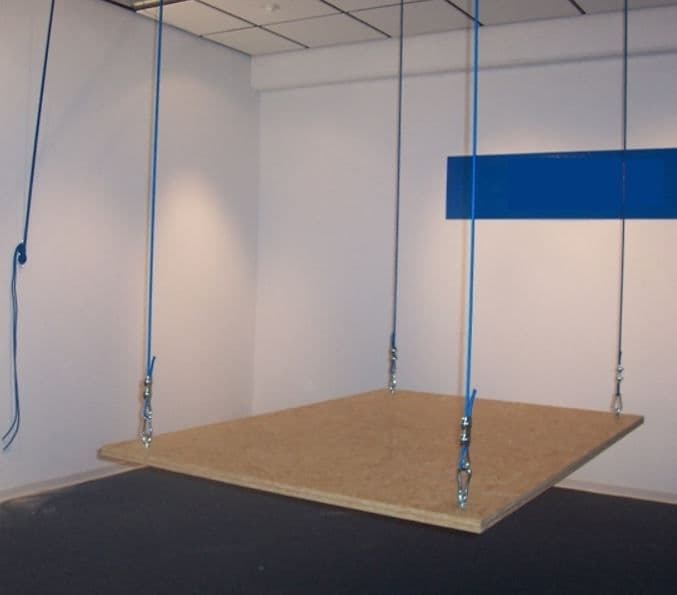

A floating table

Beginner

90min

Required tools

Board (thickness and dimensions as required

Drilling machine

open-end spanner

dowel

Step by step manual

1

Step 1

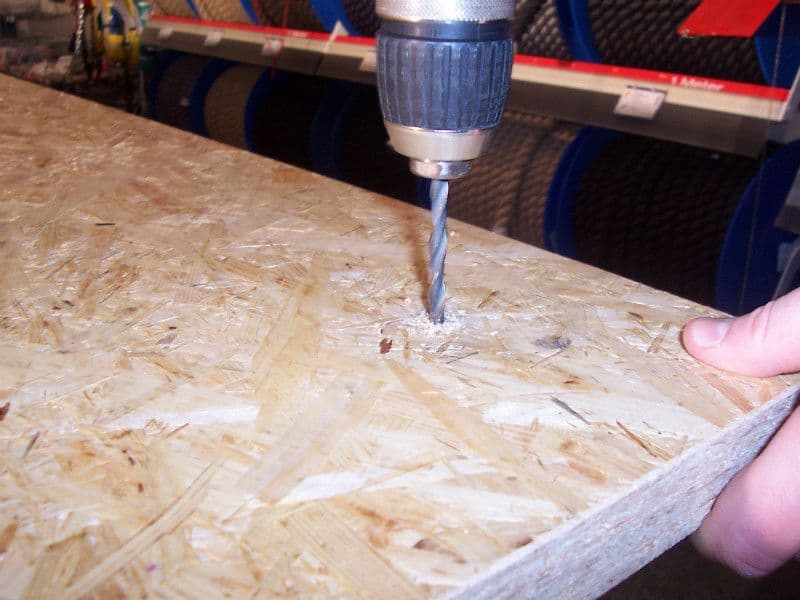

Drill holes in the board at the corners.

2

Step 2

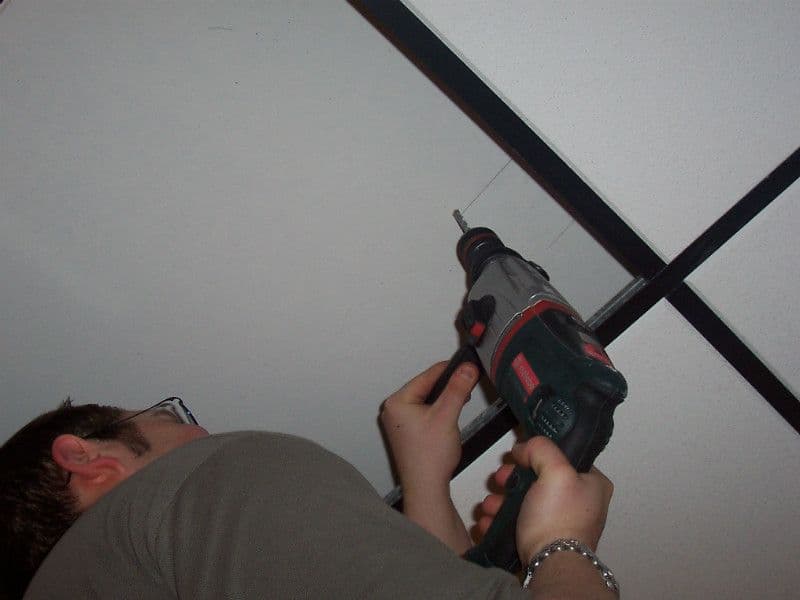

Drill 6 holes in the ceiling and insert dowels into the four holes

Drill 4 holes in the ceiling at the same spacing as the holes on the panel.

3

Step 3

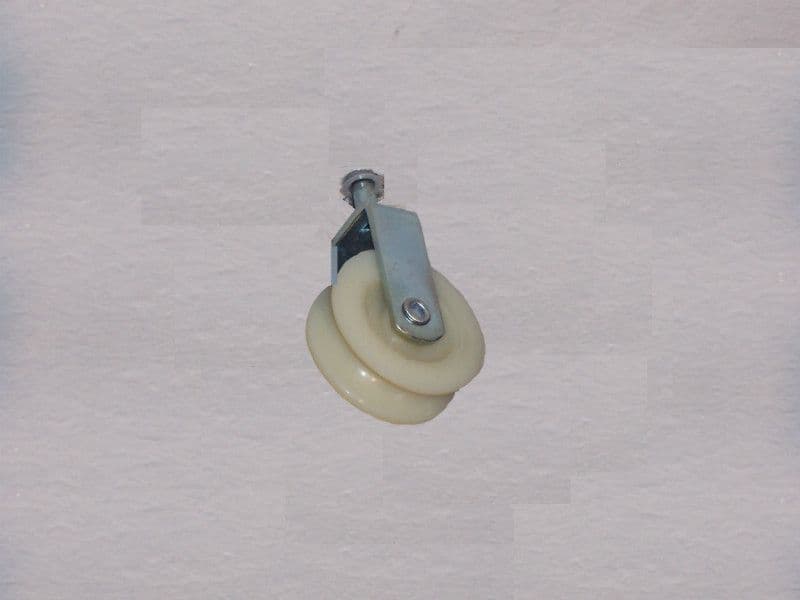

Screw an eyebolt into each of the two dowels on the ceiling near the wall and screw a bird roller into each of the other four holes

4

Step 4

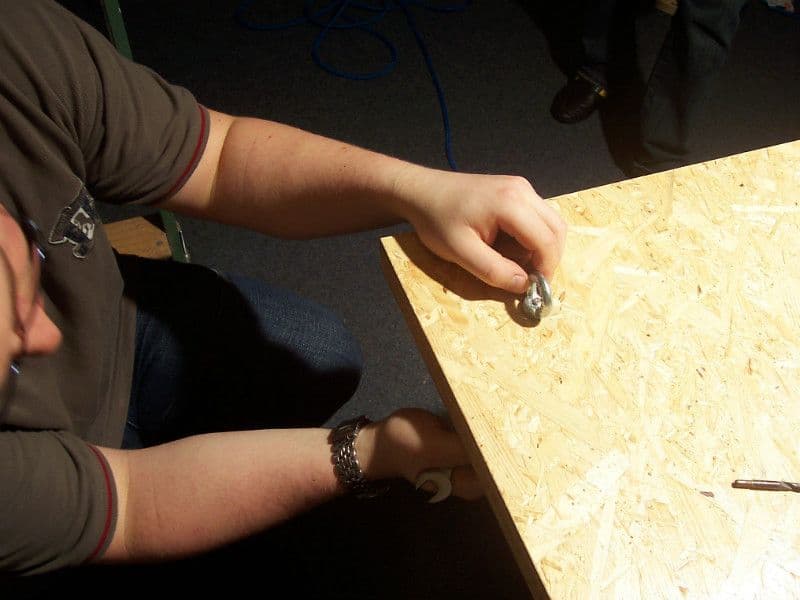

Insert a ring nut through each of the holes in the plate and counter-lock with a nut

5

Step 5

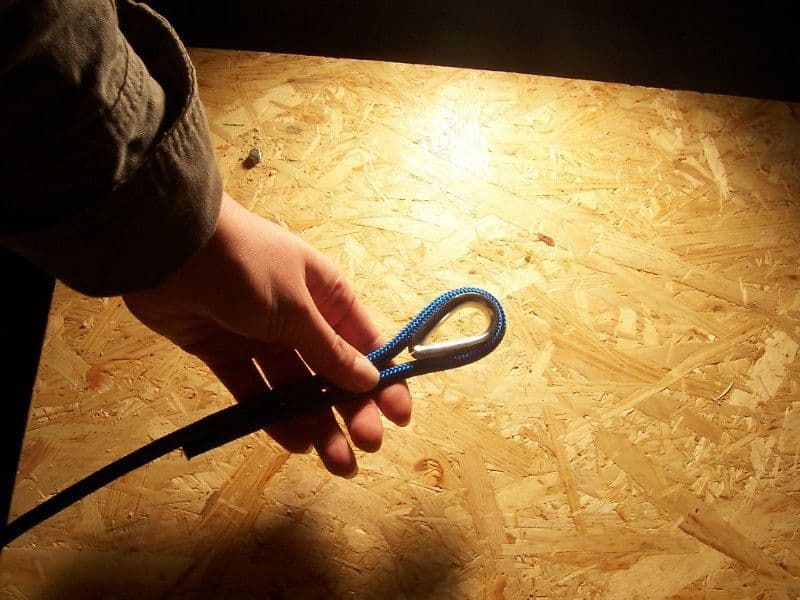

Make a loop around the rope thimble with the end of the rope (4X)

6

Step 6

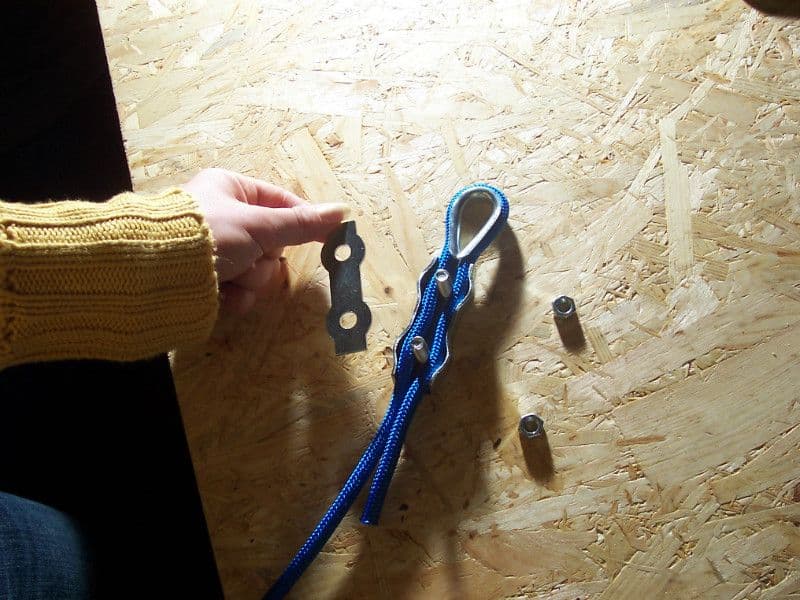

Place both rope ends in the rope clamp below the rope thimble

7

Step 7

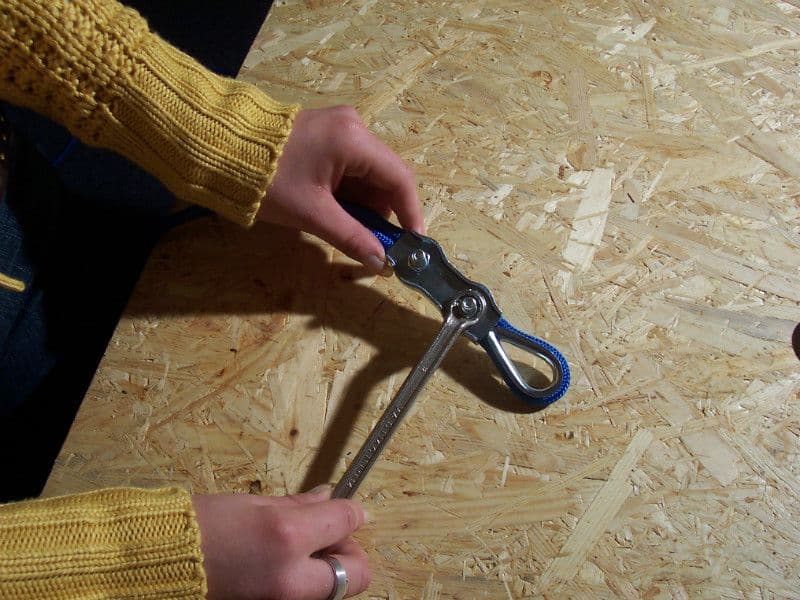

Tighten the nuts in the cable clamp

8

Step 8

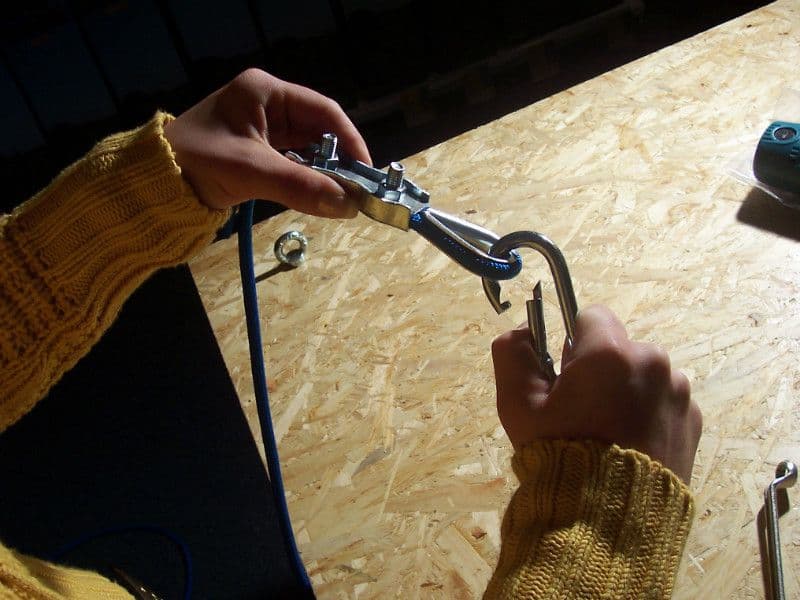

Attach a carabiner to each rope thimble

9

Step 9

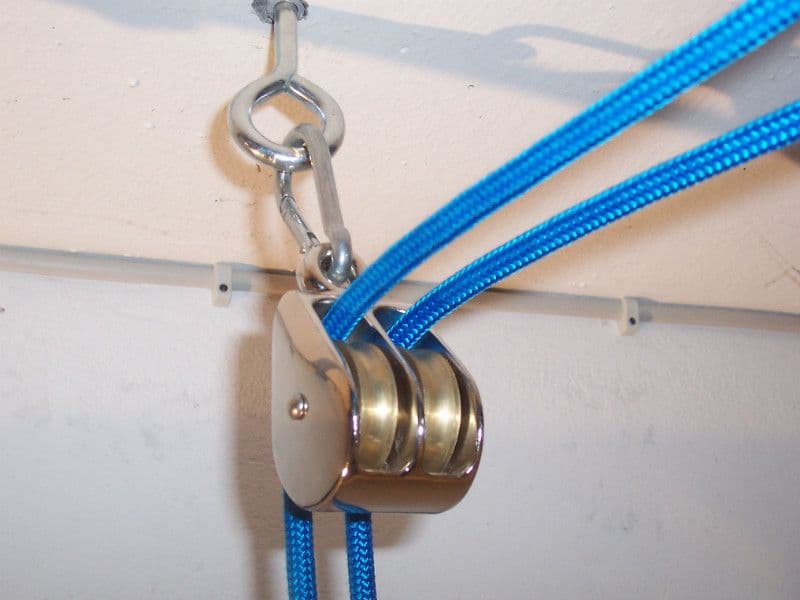

Hang a carabiner with a block rope pulley twice in the eyebolts. Guide the rope through this

10

Step 10

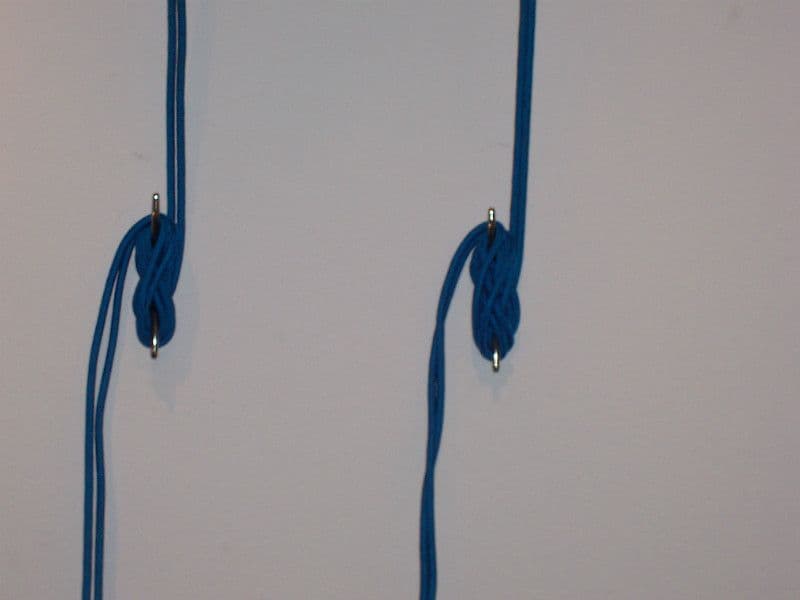

Attach two rope cleats to the wall for the remaining rope.
